We offer a machine to produce the bread crumbs.

Company

Company Name MIKAWA DENKI WORKS. CO., LTD.
Representative director NORIAKI KONDO
Address 18-7, BIWAJIMA 1-CHOME, NISHI-KU,
NAGOYA-SHI, AICHI. 451-0053 JAPAN
Establishment 10. Sep. 1946
Business Manufacture and Sale of Food machinery
(Untie Grinder mainly)
Stated capital \10,000,000-
company1 company2

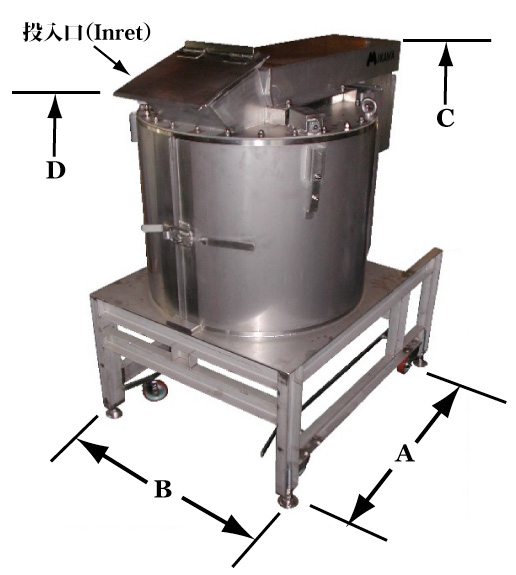

Model - appearance dimensions and capacity of small models

81Series
Model Stainless 81SFM 81SFT 81SFL
Iron 81FM 81FT 81FL
Motor 3ph/220V to 415V 1.5kw 3.7kw 5.5kw
Inlet bread size. 12 x 12 x 12㎝ 12 x 12 x 36㎝ 12 x 12 x 48㎝
Mesh(Open size) 3 to 15mm 3 to 15mm 3 to 15mm
Capacity/hour 100kg to 400kg 250kg to 1t 370kg to 1.5t
Dimensions
Length      A
Width      B
Height      C
Charging port      D
Hopper diameter
Hopper height
1000mm
750
1300
1200
300 dia.
360
 1150mm
850
1500
1400
350 dia.
380
 1300mm
940
1550
1450
400 dia.
400
Weight 200kg 370kg 500kg

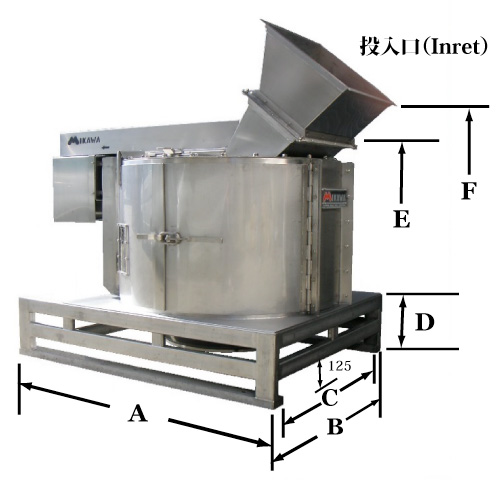

Model - appearance dimensions and capacity of large models

81Series
Model Stainless 81SPS 81SPG 81SPE 81SPX
Iron 81_PS 81_PG 81_PE 81_PX
Motor 3ph/220V to 415V 7.5kw 15kw 22kw 30kw
Inlet bread size Max."Capacity" 200 x 450 x 600mm 1/3 piece 1/2 piece 1 piece 1 piece
Mash(Open size) 3 to 15mm 3 to 15mm 3 to 15mm 3 to 15mm
Capacity/hour 0.7t to 2.1t 1.3t to 3.6t 1.8t to 5.4t 2.2t to 6.6t
Main dimensions
Length        A㎜
Width        B㎜
Inside width        C㎜
Die width        D㎜
Height        E㎜
Charging port        F㎜
 1400
1100
940
350
1225
1435		 1600
1300
1140
350
1250
1460		 1800
1500
1300
400
1300
1510		 1900
1700
1500
400
1320
1530
Inlet 500 x 450 500 x 450 500 x 450 500 x 450
Outlet Hopper diameter 600 dia. 800 dia. 950 dia. 1150 dia.
Weight 750kg 950kg 1.35t 1.5t
